Product Range

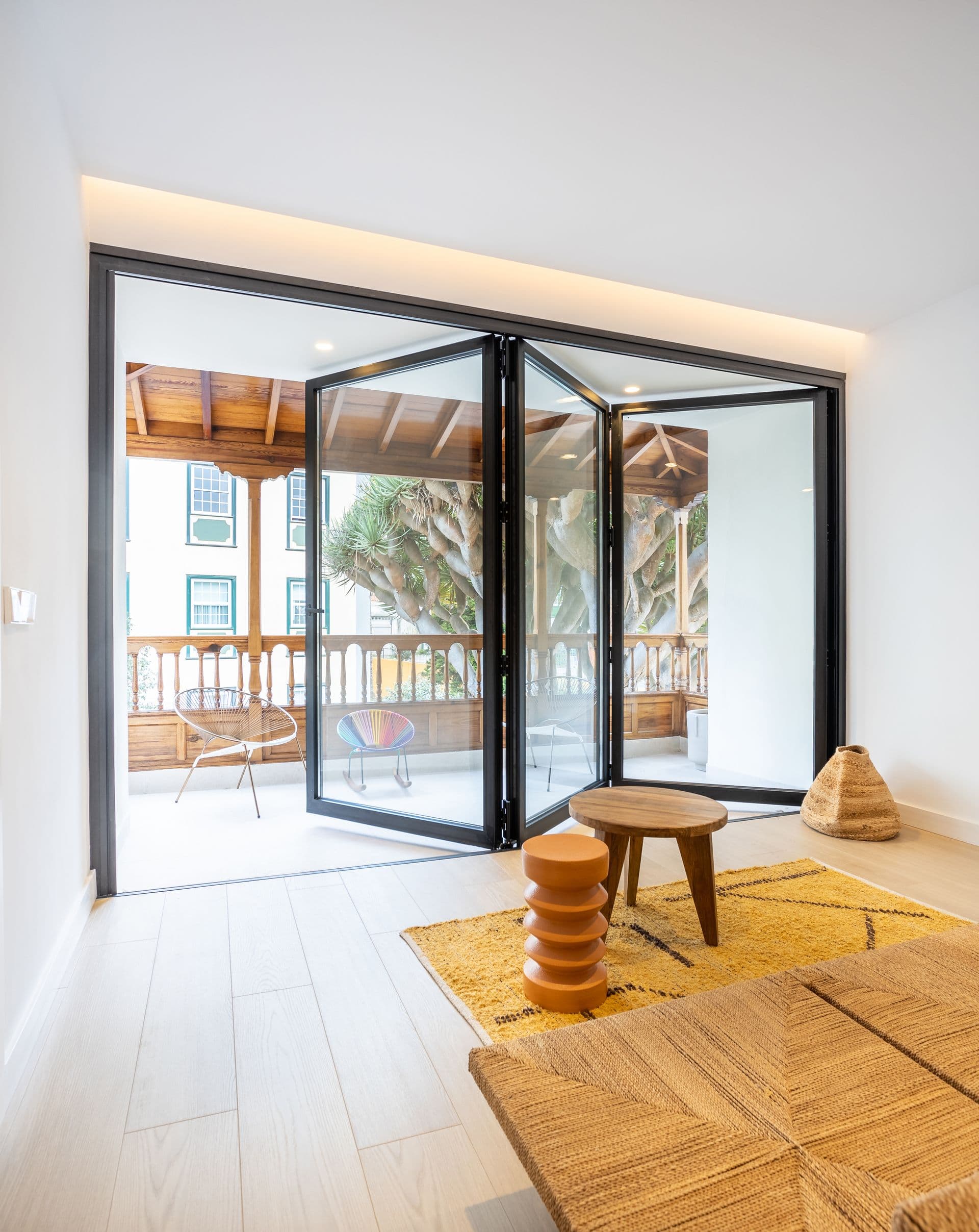

Aluminium Bi-Fold Doors
Open everything.
Our bi-folding door systems transform walls into open vistas, connecting living spaces to gardens, terraces and pools with theatrical effect.
MODERN HOME EXTENSIONS
Aluminium Folding Doors – Redefining Living Spaces with Architectural Glazing
Tearing down a solid brick back wall alters how a house functions daily. Retrofitting high-grade aluminium doors converts rigid kitchen and lounge layouts into expansive, flexible zones that open directly onto rear decking or garden patios.
Rather than feeling boxed inside during cooler winter months, UAE homeowners get uninterrupted garden views and direct outdoor access with a simple push of the lead panel.
Track sets fold panels back against side walls to clear 90% of the structural gap.
Narrow 73mm aluminium sightlines maximize glass area when closed.
Engineered frame extrusions support heavy double glass units without sagging over time.

Cortizo Bi-fold Door
An elegant thermally broken bi-fold door in aluminium that folds completely to one or both sides, opening 90–95% of the aperture.
- Top-hung track option
- Thermally broken profiles
- Dual action security locking
- 2 to 7+ leaf configurations
CORTIZO SYSTEM ENGINEERING
Precision Alloy Frames and Heavy-Duty Hardware
Smooth door movement depends entirely on metal thickness and roller bearing quality. Our range of aluminium bi fold doors uses genuine Cortizo profiles, extruded from tough 6063-T6 alloy, paired with bottom-hung stainless steel rollers that hold strict structural tolerances.
Proper European extrusion geometry prevents frame twist, keeping multi-panel setups gliding easily year after year.
Extruded alloy wall thicknesses hit up to 1.8mm for high wind resistance.
Hardened steel hinges keep heavy glass panels aligned through thousands of cycles.
Sealed stainless roller bearings run inside reinforced track channels without jumping.
DAYLIGHT MAXIMISATION
Aluminium Bi Fold Doors – Harnessing Natural Light For Brighter Interior Living
Dim interiors make compact floor plans feel cramped and uninviting. Swapping heavy timber frames or masonry walls for floor-to-ceiling glass draws bright sunlight deep into central living zones throughout the day.
Maximizing the glass surface area boosts internal light levels significantly without risking frame instability or compromising perimeter security.
Slim mullions mean less visible frame and bigger overall glass panes.
Maximum light penetration cuts daytime electric lighting needs.
High-transmittance double glazing brightens dark rooms naturally.
CLIMATE AND INSULATION
Thermal Break Technology Prevents Energy Loss
Large glass spans become major heat sources if the metal frames aren't isolated properly. Modern door profiles feature thick polyamide thermal breaks that physically separate the outer aluminium casing from the inner frame, stopping heat transfer before it reaches your living space.
Pairing thermal frame barriers with solar-control glass keeps indoor temperatures stable, even when summer heat hits 50°C outside.
24mm to 34mm polyamide strips stop thermal conduction through metal profiles.
Low-E coated double or triple glass blocks direct solar radiation.
Lower heat transfer reduces indoor AC loads and keeps electricity bills manageable.
THRESHOLD DESIGN
Level Transitions with Flush Bottom Tracks
Standard door thresholds create awkward step-overs that trip up family members and visually break interior spaces from exterior patios. Mounting aluminium bi fold doors on recessed tracks sinks the bottom frame flush with finished floor tiles.
Aligning indoor floor levels with outdoor paving creates one continuous surface that feels balanced underfoot while managing water drainage.
Sunken tracks remove step-over risks between kitchen and patio zones.
Integrated sub-sill drainage tracks channel heavy rainwater away from interior floors.
Level floor transitions allow easy stroller, wheelchair, and foot traffic.
FLEXIBLE LAYOUT PLANNING
Custom Panel Configurations to Fit Your Floor Plan
Every residential project presents different structural opening sizes and internal furniture layouts. Custom-built aluminium folding doors configure from 2 to 13 panels, folding inward, outward, or splitting down the center to match your exact room dimensions.
Tailored panel arrangements ensure parked door leaves stay out of walking paths without blocking garden seating or indoor furniture layouts.
Flexible configurations fit structural openings from 1.5 meters up to 12 meters wide.
Panels stack neatly to the left, right, or divide across both sides.
Outward-folding options preserve internal floor space and furniture clearance.
CONVENIENT DAILY ACCESS
Integrated Traffic Doors for Quick Garden Entry
Unlocking an entire multi-panel door run just to let a pet outside or grab something from the garden is inefficient. Adding a primary traffic door gives you standard hinged entry right inside the main folding track mechanism.
This practical feature gives household members quick access for daily errands while keeping the rest of the folding wall locked securely in place.
Primary master leaf operates via standard latch and lever handle.
Quick entry and exit without unlatching main panel shootbolts.
Main folding panels stay locked, keeping conditioned AC air inside.
ADVANCED PERIMETER PROTECTION
Multi-Point Shootbolt Locks Ensure Total Peace of Mind
Expansive rear glass openings require heavy-duty locking systems to prevent forced entry. Modern folding setups feature hardened steel shootbolts that extend deep into both top and bottom tracks when you lift the main handle.
Combined with toughened or laminated glass units, these physical locking components provide real security for ground-floor living spaces.
Heavy steel shootbolts lock panels firmly into top and bottom guide tracks.
Anti-lift track blocks prevent panels from being levered off the frame from outside.
Anti-snap, anti-drill key cylinders stop physical lock manipulation attacks.
WEATHER SEALING INTEGRITY
High-Performance Gaskets Resist Extreme Wind and Heavy Rain
Exposed patio doors facing open gardens must hold up against driving rain and heavy wind pressure. High-density EPDM rubber gaskets run around every panel edge and frame joint, compressing tight under lock pressure.
These durable rubber seals compress evenly when handles latch, keeping indoor living spaces dry, dust-free, and quiet during unexpected weather shifts.
Class 4 air permeability gaskets stop fine desert dust and wind drafts.
E900 rated water tightness prevents rain penetration during heavy storms.
Certified structural frames resist severe wind loads up to 2000 Pa.
ARCHITECTURAL COATINGS
Tailored Finishes with Durable Powder-Coated Colors
Exterior metal finishes need to suit your property's style while standing up to intense sun exposure and humidity. Our range of aluminium bi fold doors comes with Qualicoat-certified powder coatings available in over 300 RAL shades.
Thermally baked powder coatings bond directly with the underlying alloy, ensuring frame surfaces stay clean and scratch-free without needing periodic repainting.
Marine-grade powder coats resist UV fading, chalking, and coastal air corrosion.
Dual-color frames let you match dark outdoor profiles with lighter interior trim.
Anodized and wood-grain metallic options offer distinct architectural finishes.
NOISE REDUCTION PROPERTIES
High Acoustic Insulation Blocks Urban Sound
Busy street traffic, loud neighbors, and local construction ruin quiet home environments. Specifying acoustic double-glazed units within heavy metal frames forms a solid barrier against unwanted exterior sound transmission.
Closing the doors cuts exterior noise levels by up to 42 dB, keeping your indoor lounge quiet regardless of outdoor activity.
Asymmetric glass pane thicknesses disrupt low-frequency traffic noise waves.
Acoustic PVB interlayers absorb high-pitch sound vibrations effectively.
Tight perimeter gasket seals close off tiny air gaps where sound travels.
MATERIAL COMPARISON
Why Structural Alloy Outperforms UPVC and Timber Frames
Choosing the right frame material determines how often your doors need repairs or adjustments. Selecting aluminium folding doors over UPVC or wood delivers massive structural advantages, particularly in environments with severe temperature shifts.
Unlike wood that absorbs moisture or UPVC that softens under direct sun, structural alloy holds its exact shape, keeping your panels sliding smoothly across seasons.
High metal strength allows ultra-thin frame profiles with massive glass areas.
Zero frame twisting, expanding, or bowing under 50°C summer heat.
Low maintenance needs compared to timber that requires sanding and varnish.
Complete the System
Works well with
VERSATILE APPLICATIONS
Adaptable Glazing for Residential and Commercial Buildings
Large folding glass walls suit far more than residential kitchen extensions. Their modular design fits luxury villa rear patios, restaurant dining terraces, and internal office conference rooms equally well.
Whether you are remodeling a home lounge or upgrading a commercial shopfront, folding frames adapt easily to your specific layout requirements.
Residential patio doors create flexible indoor-outdoor hosting spaces.
Restaurant fronts open wide to encourage walk-in street traffic.
Internal room partitions split wide office floors into private meeting spaces.
SIMPLE MAINTENANCE ROUTINES
Essential Care Guidelines Keep Systems Gliding Smoothly
No one wants high-maintenance building fixtures that require constant attention. Taking care of your aluminium bi fold doors takes just a few basic maintenance steps each year to preserve track bearings and frame finishes.
Keeping track grooves clear of debris stops roller bearing wear, ensuring your door panels slide effortlessly with a light touch for years.
Vacuum bottom track channels monthly to clear out sand, grit, and dirt.
Wash powder-coated alloy frames with mild soapy water and a soft cloth.
Apply light silicone spray to stainless steel roller bearings once a year.
STRUCTURAL CAPACITY
Heavy-Duty Load Ratings Support Large Glass Spans
Carrying heavy double or triple glass units requires serious bottom-roller engineering. Our stainless roller assemblies distribute glass weight evenly along the lower track, preventing panels from dragging or sticking.
Robust roller engineering lets you install tall glass panels with total confidence that the door mechanism will operate smoothly without binding.
Heavy-duty trolley rollers carry individual panel weights up to 120 kg.
Tall frame options handle structural wall openings up to 3000 mm high.
Individual panel widths expand up to 1200 mm per leaf for wider views.
PROPERTY VALUE ELEVATION
Long-Term Market Appeal for Renovations and Builds
Upgrading key architectural elements improves daily living quality while raising your property's resale appeal. Installing high-grade folding glass walls modernizes older home layouts, creating an attractive feature buyers look for.
Replacing a solid rear wall with an open glass layout creates instant visual impact, adding real financial value to your real estate investment.
Clean modern lines elevate your home's exterior curb appeal instantly.
Open-plan garden connections rank high among desirable house features.
Energy-efficient thermal frames reassure buyers on long-term running costs.
Common Questions
Frequently asked questions.
Have a question not listed here?
Technical Insights
Further reading.
WHY SWIFTROOMS
Bifold Systems Specified for Gulf Climates, Not Generic Imports
We've supplied and installed aluminium folding doors across enough Dubai villas, Abu Dhabi coastal properties, and Sharjah developments to know which roller tracks, thermal breaks, and powder coats actually survive intense summer heat and sandstorms.
As an authorised partner for Cortizo, Vetro, and Gulf Extrusions, we supply heavy systems built from genuine factory stock, backed by real warranties.
Authorised partner for Cortizo, Vetro, Vetromax, and Gulf Extrusions systems.
High-grade thermal-break profiles built specifically for extreme Gulf heat.
Free site survey, track-leveling checks, and written specs within 24 hours.
Direct technical support for architects, contractors, and project managers.
